"Z" Lift Manipulators

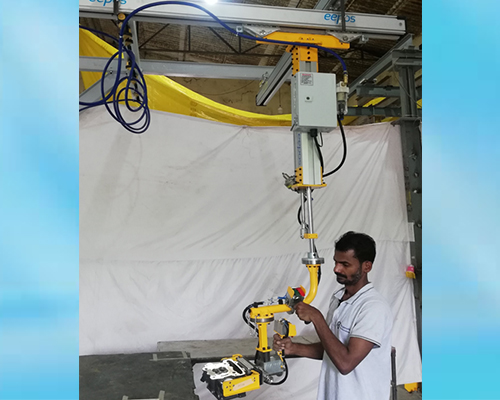

“Z” Lift Manipulator with Compact Single Axis Rigid Slide for Quick Handling.
Ergomatic Z Lift Manipulators : a wide range of ergonomic handling systems for any type of product and load.
- The "Z" Lift Manipulator Design :

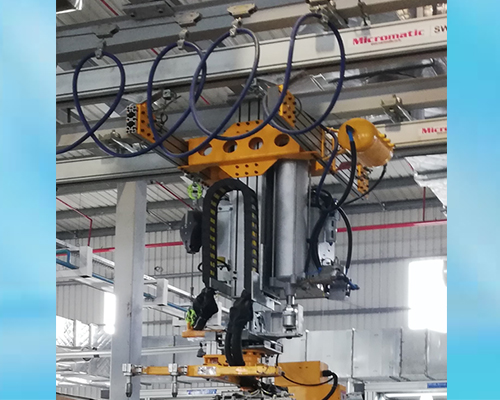

The ERGOMATIC "Z" Lift Manipulator provides a rigid “load arm” between the workpiece and the crane that allows for loads to be securely manipulated. Operated by air under pressure, this guided lift utilizes the physics of torque to handle various industrial lifting needs, specifically addressing demands for off-center load lifting. It employs a lifting cylinder combined with a guide shaft and linear bearing combination.
- Advantages of "Z" Lift Manipulator Pneumatic Lifts
ERGOMATIC customers have come to expect high quality from every one of our pneumatic lifts, and the "Z" Lift Manipulator does not disappoint. This design, in particular, offers various advantages that can be put into effect as soon as you place an order with us. Explore these benefits below:
- Off-Center Load Handling
While other lifting devices risk becoming misaligned, our "Z" Lift Manipulator is uniquely designed to accommodate off-center loads. The guide shaft is what prevents the lifting cylinder from experiencing any effect of side load that could cause binding or rod and seal damage. For a pneumatic lift that can withstand challenging loads, consider a "Z" Lift Manipulator from ERGOMATIC.
- Precision Pneumatic Lifting
A wrist swivel with an end effector mounting plate provides rotation capability for precise tool orientation and positioning of loads.
- Capacities & Features
The pneumatic lifting features and capacities of the "Z" Lift Manipulator are exemplary in our industry. These lifts include two-button, speed-metered, vertical-lift control handles, with vertical lifts of up to 1500 mm available. This particular model of guided lift has a weight capacity of up to 500 Kg. "Z" Lift Manipulator operates on 4 to 7 Bar plant air and includes a wrist swivel for tool/payload positioning.
