Jib Crane

ERGOMATIC Offers wide range of our jib cranes. Each of our jib cranes comes with excellent safety features to ensure that our products can keep your business running smoothly and securely. ERGOMATIC includes the top-of-the-line ergonomic thoughtfulness that we are known for in every one of our jib cranes. Explore the rotation features we offer and discover which one of these products is best suited for seamlessly integrating into your workspace.
The standard range includes handling loads up to 2000 kg. with arm lengths up to 6 meter.

The Ergomatic jib cranes are available with Air Balancer, Electric Hoist, Z Lift,with Customized Gripper and Tackle in the following combinations :

• Floor Column Mounted Slewing Jib Crane
• Wall Mounted Slewing Jib Crane
• Floor Column Mounted Articulated Jib Crane
• Wall Mounted Articulated Jib Crane
• Ceiling Fixed Mounted Articulated Jib Crane
• Rail Trolley mounted Articulated Jib Crane

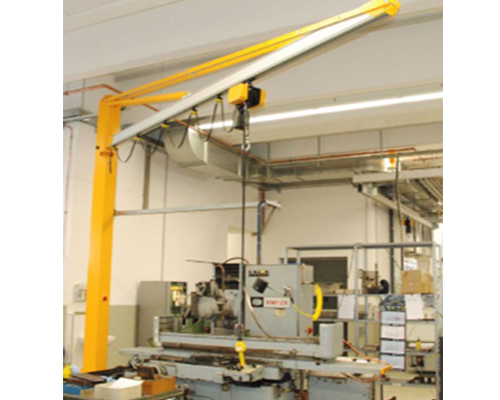

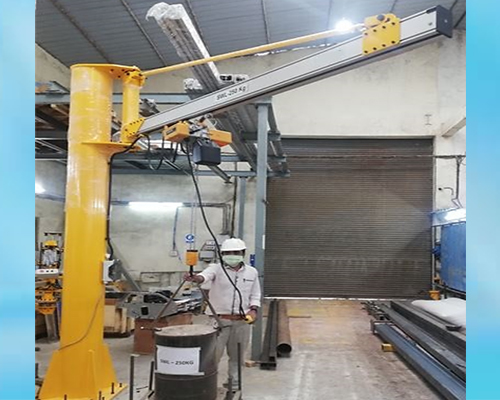

Pillar-mounted slewing jibs with jibs made of profile sections from the light crane system feature high load capacities and a long outreach in relation to their deadweight. The low weight enables the jib to be moved easily and the use of Profile hollow section rail as the crane girder requires very low force to travel.

Silent Features

• Light and fast load handling.
• The slewing range covers 270°.
• Ease of operation and high operating safety and reliability
• Load capacities up to 1,000 kg.
• Simple installation using fittings included in the system.
• Fitted With Electric Chain Hoist/Air Hoist.

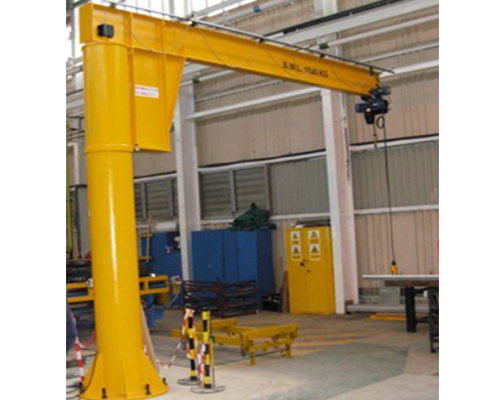

MJB pillar-mounted slewing Jib cranes for loads weighing up to 1,000 kg feature particularly low headroom and compact dimensions. They are the ideal solution wherever maximum hook paths are required for applications with low ceiling dimensions.

Silent Features

• The slewing range covers 360°.
• Ease of operation and high operating safety and reliability.
• Load capacities up to 1,000 kg.
• Simple installation using fittings included in the system.
• Fitted With Electric Chain Hoist/Air Hoist.

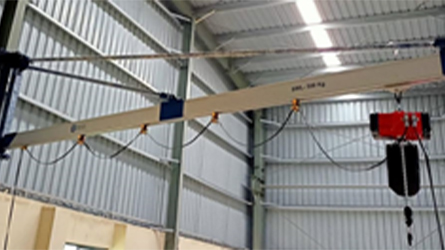

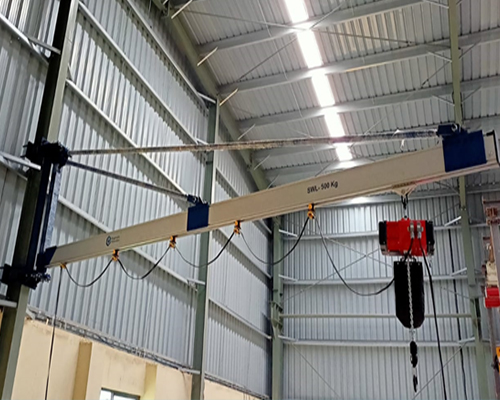

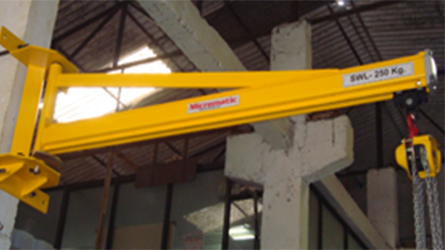

A decisive advantage of wall-mounted slewing jibs is that they require no floor space, since they are mounted on load-bearing concrete walls, pillars or machinery and installations. They are particularly easy to install, since the bracket is ready to be fitted as a unit and eliminates any complicated alignment work. MJR wall-mounted slewing jibs are suitable for the lower load range up to 1000 kg.

Silent Features

• Light and fast load handling.
• The slewing range covers 270°.
• Ease of operation and high operating safety and reliability.
• Load capacities up to 1,000 kg.
• Simple installation using fittings included in the system.
• Fitted With Electric Chain Hoist/Air Hoist.

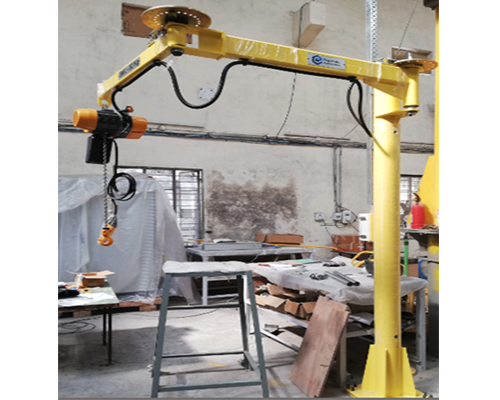

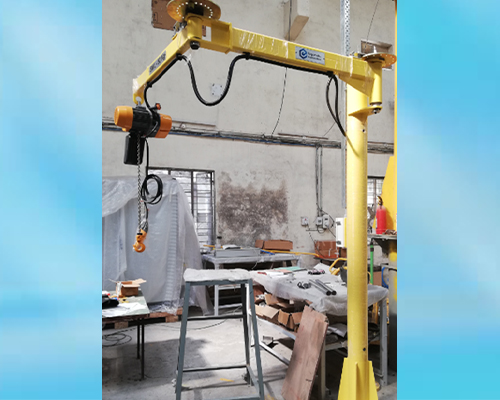

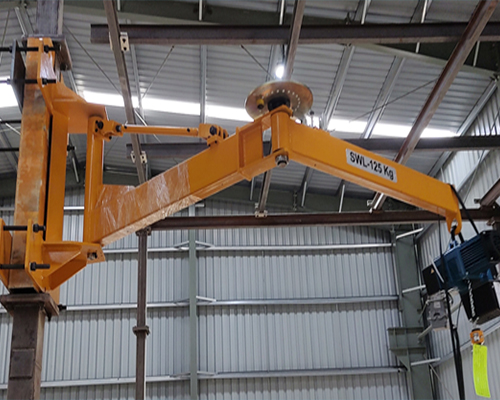

MJA Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the crane's coverage area. These jibs can position and spot a load around obstructions, through doorways, or rotate in close to the free standing mast or building column. Available in capacities up to 500 kg.

Silent Features

• The slewing range covers 360°.
• Ease of operation and high operating safety and reliability.
• Load capacities up to 500 kg.
• Simple installation using fittings included in the system.
• Fitted With Electric Chain Hoist/Air Hoist.
